Pile caps are one of the most important components in deep foundation systems. A 3-pile pile cap is commonly used when a single column transfers heavy structural loads to three bored cast-in-situ piles arranged in a triangular pattern.

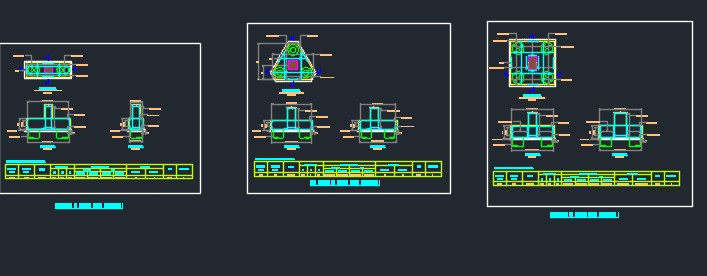

The drawing shown above represents a 3-pile reinforced concrete pile cap designed to support a centrally placed reinforced concrete column. It includes the pile layout, reinforcement detailing, sectional views, and reinforcement schedule required for construction.

This article explains every part of the drawing and provides practical guidance for engineers, site supervisors, students, and contractors.

PILECAP DETAIL DRAWING Download

What is a Pile Cap?

A pile cap is a thick reinforced concrete member that ties two or more piles together and distributes the load from the column uniformly to the pile group.

The pile cap acts as an intermediate structural element between:

Superstructure Column
Foundation Piles
Soil Bearing System

Without a properly designed pile cap, loads cannot be transferred efficiently, resulting in excessive stresses and differential settlement.

A 3-pile cap is a deep member, so the Strut-and-Tie Model is more appropriate than ordinary beam theory. The column should generally be positioned at the centroid of the pile group to achieve balanced pile reactions. When the load passes through the centroid, each pile ideally carries one-third of the vertical load (neglecting the pile cap’s self-weight). If the column is eccentric, the pile reactions become unequal and additional bending effects must be accounted for. The bottom reinforcement functions as the tension tie, while the concrete carries load through inclined compression struts.

Components Shown in the Drawing

The drawing consists of the following major views:

1. Pile Cap Plan

The plan view shows:

Three pile locations
Column position
Reinforcement direction
Edge dimensions
Concrete cover
Section cutting lines
Reinforcement spacing

The piles are arranged in a triangular configuration providing equal load distribution.

2. Section A-A

This section illustrates:

Overall pile cap depth
Bottom reinforcement
Top reinforcement
Column starter bars
PCC layer
Pile penetration into cap
Concrete cover

3. Section B-B

The second section provides:

Reinforcement in the perpendicular direction
Bar spacing
Anchorage
Development length
Bottom reinforcement placement

4. Reinforcement Schedule

The schedule provides:

Item	Description
Concrete Grade	M40
Reinforcement Steel	Fe415
Number of Piles	3
Pile Diameter	1000 mm
Overall Depth	925 mm
Top Reinforcement	T10 @140 mm c/c
Bottom Reinforcement	T25 @145–150 mm c/c

This schedule allows site engineers to fabricate reinforcement accurately

Advantages of 3-Pile Pile Cap

✔ Uniform load distribution

✔ Economical design

✔ High structural stability

✔ Suitable for heavy columns

✔ Reduces differential settlement

✔ Excellent seismic performance

✔ Easy reinforcement detailing

Common Design Checks

Structural engineers generally verify:

Bearing capacity
Punching shear
One-way shear
Flexural strength
Strut-and-tie action
Development length
Anchorage
Concrete cover
Crack width
Reinforcement spacing

Quality Control Checklist

Before concreting ensure:

Pile positions verified
Reinforcement checked
Bar spacing maintained
Cover blocks installed
Column bars vertical
PCC level completed
Formwork aligned
Concrete grade confirmed
Vibrator available
Cube samples prepared

Typical Applications

A 3-pile pile cap is widely used in:

Commercial Buildings
Industrial Plants
Steel Structures
PEB Buildings
Warehouses
Bridges
Water Tanks
Towers
Heavy Machine Foundations
Multi-storey Buildings

Common Construction Mistakes

Avoid these frequent errors:

Incorrect pile positioning
Insufficient concrete cover
Missing top reinforcement
Improper bar anchorage
Honeycombing due to poor vibration
Uneven pile head levels
Wrong reinforcement spacing
Inadequate curing
Improper pile trimming
Misaligned column starter bars

Best Construction Practices

Use accurate surveying before excavation.
Trim pile heads to the specified level.
Maintain reinforcement cover with approved cover blocks.
Use the specified concrete grade.
Vibrate concrete adequately to eliminate voids.
Cure the pile cap continuously to achieve the desired strength.
Inspect reinforcement and formwork before pouring concrete.

Conclusion

A 3-pile pile cap is an efficient and reliable foundation element for transferring heavy column loads to a triangular pile group. Proper detailing of reinforcement, correct pile spacing, adequate concrete cover, and thorough quality control are essential for long-term structural performance. The drawing shown illustrates a practical reinforcement layout that helps engineers and site teams execute the foundation safely and accurately.
