Introduction
Cable racks (also called cable trays or cable support systems) are essential structural elements used in industrial plants, substations, commercial buildings, and infrastructure projects. These racks safely support and organize electrical cables, ensuring durability, accessibility, and safety.
Structural steel is widely used in cable rack systems due to its high strength, durability, and ease of fabrication.
What is a Cable Rack in Structural Engineering?
A cable rack is a steel support system designed to carry electrical cables across:
- Industrial plants
- Power substations
- Refineries
- Commercial buildings
- Metro and infrastructure projects
It consists of horizontal trays supported by vertical steel frames or columns.
🖼️ Types of Cable Rack Systems
1. Ladder Type Cable Tray
- Most common in industrial plants
- Suitable for heavy cables
- Easy heat dissipation
2. Perforated Cable Tray
- Used in commercial buildings
- Moderate load capacity
- Better cable protection

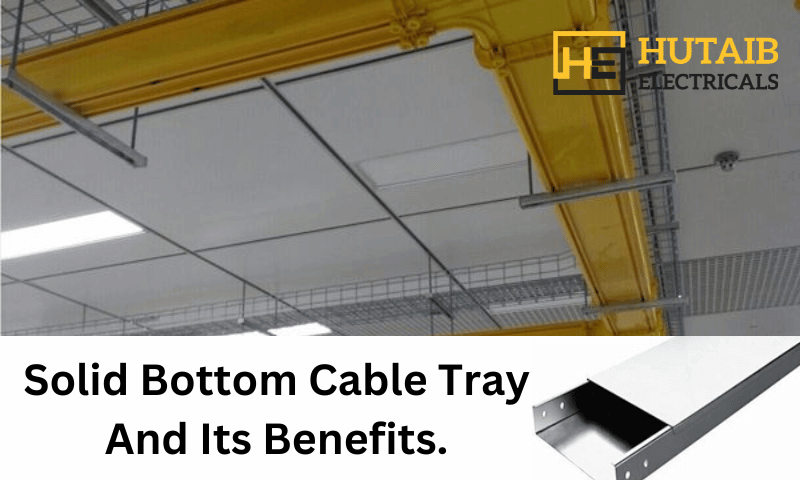

3. Solid Bottom Cable Tray
- Used where protection from dust is required
- Limited ventilation
4. Wire Mesh Cable Tray
- Lightweight and flexible
- Used in data centers
🔷 Components of Cable Rack Structural System
Key Components:
- Columns (Vertical Supports)
- Beams (Horizontal Members)
- Cable Trays
- Bracings (for lateral stability)
- Base Plates & Anchor Bolts
- Cantilever Arms / Brackets
Design Loads for Cable Rack
Proper load calculation is critical for safe design.
1. Dead Load (DL)
- Self-weight of steel structure
- Weight of cable trays
2. Cable Load (CL)
- Weight of cables per meter
- Future expansion allowance (typically +25%)
3. Live Load (LL)
- Maintenance load (personnel access if applicable)
4. Wind Load (WL)
- Important for outdoor cable racks
5. Seismic Load (EL)
- As per IS 1893 (for Indian projects)
Design Considerations
✔ Load Combinations (as per IS Codes)
Typical combinations:
- 1.5 (DL + CL)
- 1.2 (DL + CL + WL)
- 1.5 (DL + WL)
✔ Span of Cable Rack
- Typical span: 3m to 6m
- Depends on load and tray type
✔ Deflection Limits
- Generally limited to:
Span / 180 to Span / 240
✔ Material Selection
Common steel sections:
- ISMB (Indian Standard Medium Beam)
- ISMC (Channels)
- ISA (Angles)
- RHS/SHS sections
Steel grade:
- Fe250 / Fe345
Structural Design Process
Step 1: Load Calculation
- Calculate tray + cable load per meter
- Add self-weight of structure
Step 2: Beam Design
- Design cantilever or simply supported beam
- Check:
- Bending moment
- Shear force
- Deflection
Step 3: Column Design
- Axial load + bending
- Check slenderness ratio
Step 4: Bracing Design
- Wind/seismic resistance
- Use angle or rod bracing
Step 5: Connection Design
- Bolted or welded connections
- Base plate design with anchor bolts
🔷 Sample Calculation (Basic Concept)
Assume:
- Cable load = 1.5 kN/m
- Tray weight = 0.5 kN/m
- Total = 2.0 kN/m
For 4m span:
- Maximum moment = wL²/8
= 2 × 4² / 8 = 4 kNm
Select suitable steel section accordingly.

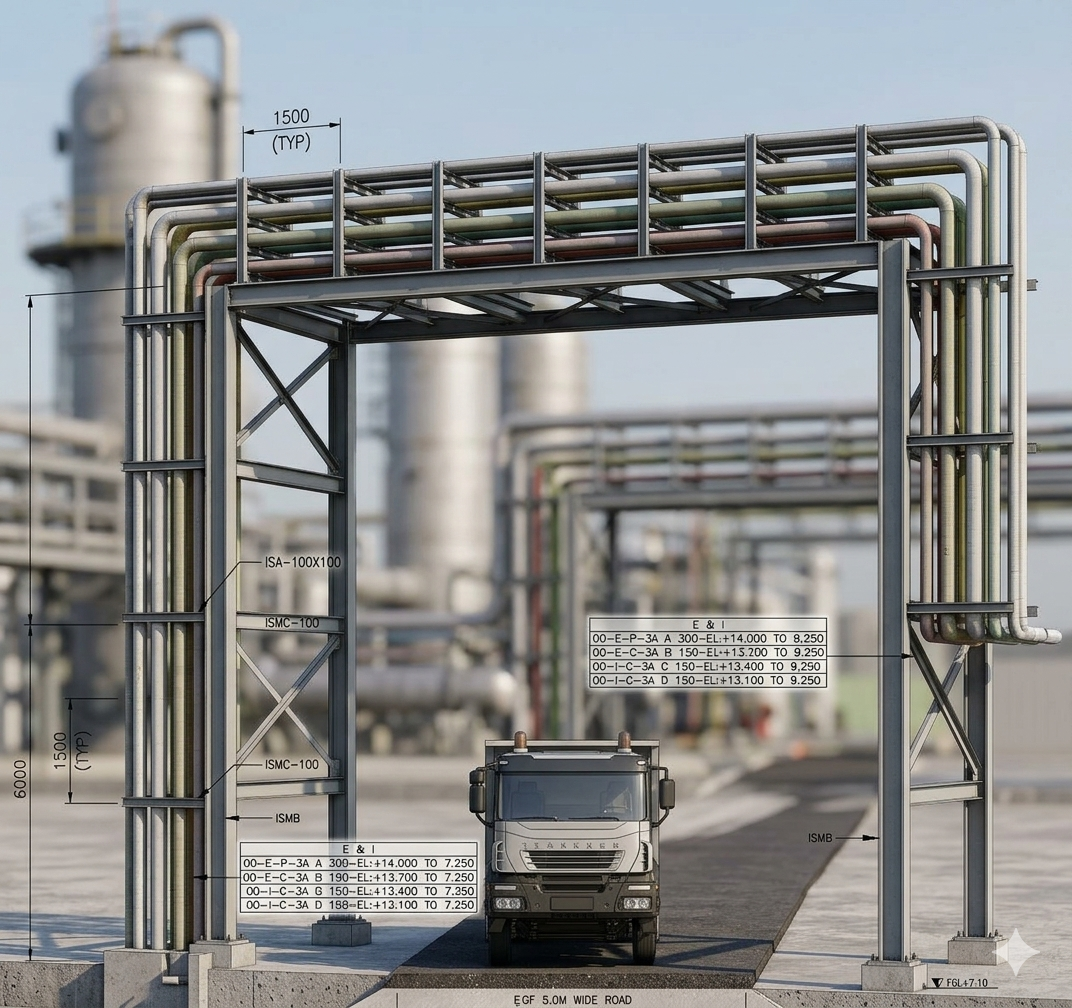

🔷 Typical Structural Arrangement
- Multi-tier cable trays (2 to 6 levels)
- Cantilever or portal frame type
- Pipe rack integration in industries
🔷 Advantages of Steel Cable Racks
- High strength-to-weight ratio
- Easy fabrication and erection
- Durable and long-lasting
- Expandable for future loads
- Cost-effective
🔷 Common Mistakes in Design
❌ Ignoring future cable loads
❌ Not considering wind/seismic loads
❌ Improper bracing design
❌ Excessive deflection
❌ Poor connection detailing
