Introduction
Reinforced Cement Concrete (RCC) shear walls are one of the most important structural elements used in modern buildings, particularly high-rise buildings and earthquake-resistant structures. These walls are designed to resist lateral loads such as wind loads and seismic forces.
In multi-storey buildings, columns and beams alone cannot effectively resist large lateral forces. Therefore, engineers use shear walls to increase the building’s stiffness, strength, and stability.
Shear walls act like vertical cantilever beams that transfer horizontal loads from floors and roofs down to the foundation safely.


What is an RCC Shear Wall?
A shear wall is a vertical reinforced concrete wall designed to resist horizontal forces acting on a structure.
It functions like a structural spine of the building that prevents excessive swaying during:
- Earthquakes
- Strong wind loads
- Seismic vibrations
- Lateral structural movement
Simple Definition
A shear wall is a vertical structural element that resists lateral forces and transfers them safely to the foundation.
Why Shear Walls Are Important
In tall buildings, lateral forces can cause:
- Excessive building sway
- Structural damage
- Cracking in beams and columns
- Building collapse during earthquakes
Shear walls solve these problems by:
- Increasing lateral stiffness
- Improving earthquake resistance
- Reducing deflection and vibration
- Enhancing structural safety
Locations Where Shear Walls Are Provided

Shear walls are strategically placed in buildings for maximum structural efficiency.
Common Locations
- Lift core walls
- Staircase walls
- Building perimeter walls
- Central core walls
- Basement retaining walls
- Industrial structures
The central core system is the most common in tall buildings.
Components of RCC Shear Wall
RCC Shear Wall editable file free download
A shear wall consists of several structural components.
1. Concrete Wall Panel

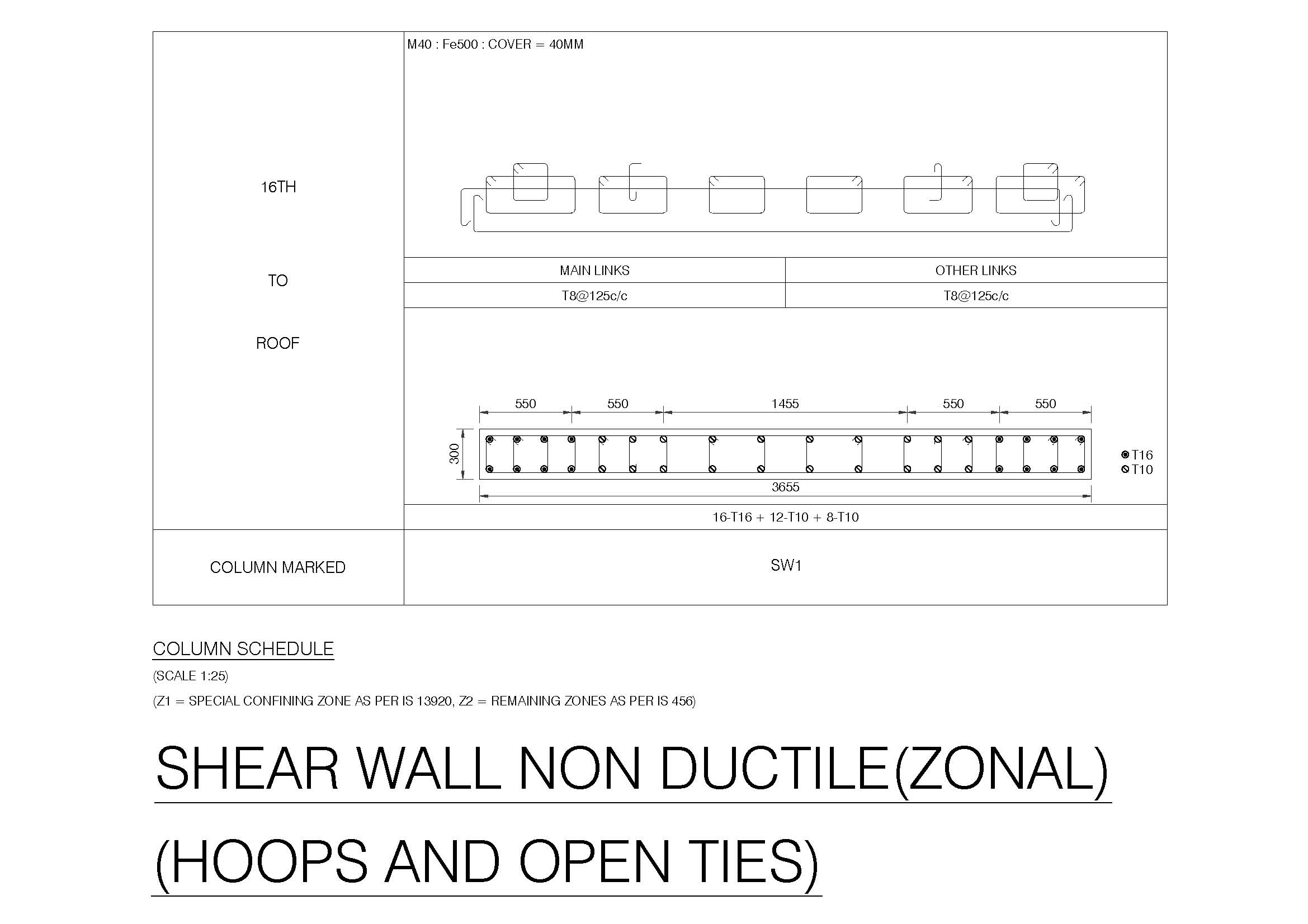

Shear wall with column





The main vertical concrete element that resists shear forces.
Typical thickness:
- 150 mm – 400 mm
2. Vertical Reinforcement
Vertical bars resist bending forces and tension.
Typical bar size:
- 10 mm
- 12 mm
- 16 mm
- 20 mm
3. Horizontal Reinforcement
Horizontal bars resist shear stresses and crack control.
Spacing usually:
- 150 mm – 300 mm c/c
4. Boundary Elements
Extra reinforcement provided at the edges of the wall where stresses are highest.
5. Coupling Beams
Beams connecting two shear walls to improve stiffness.
Types of RCC Shear Walls


1. Planar Shear Wall
A single vertical wall resisting lateral loads.
Common in residential buildings.
2. Flanged Shear Wall
Walls connected with perpendicular walls forming L, T, or U shapes.
Provides higher stiffness.
3. Coupled Shear Wall
Two shear walls connected by coupling beams.
Improves energy dissipation during earthquakes.
4. Core Shear Wall System
Walls placed around lift and staircase core.
Common in skyscrapers.
Typical RCC Shear Wall Dimensions
| Parameter | Typical Range |
|---|---|
| Wall Thickness | 150 mm – 400 mm |
| Reinforcement spacing | 150 – 300 mm |
| Concrete Grade | M25 – M40 |
| Steel Grade | Fe415 / Fe500 |
| Boundary element width | 300 – 600 mm |
RCC Shear Wall Reinforcement Details


Proper reinforcement detailing is critical for shear wall performance.
Vertical Reinforcement
- Placed on both faces of wall
- Spacing: 150 mm – 300 mm
Horizontal Reinforcement
- Controls cracking
- Improves shear resistance
Boundary Reinforcement
- Provided at edges
- High compression zone
Minimum Reinforcement (as per IS codes)
Vertical steel:
0.25% of gross cross-sectional area
Horizontal steel:
0.25% of gross cross-sectional area
Construction Procedure of RCC Shear Wall
Step 1 – Layout Marking
Wall centerline marked on slab.
Step 2 – Reinforcement Fixing
Vertical and horizontal bars tied as per structural drawings.
Step 3 – Formwork Installation
Special shear wall shuttering panels installed.
Step 4 – Concrete Pouring
Concrete poured using:
- Pump concrete
- Vibrators for compaction
Step 5 – Curing
Minimum curing:
7 – 14 days
Step 6 – Formwork Removal
Removed after sufficient concrete strength.
Advantages of RCC Shear Walls
✔ High lateral load resistance
✔ Excellent earthquake performance
✔ Reduces structural damage
✔ Increases building stiffness
✔ Suitable for high-rise buildings
✔ Reduces beam and column sizes
Disadvantages of Shear Walls
✖ Requires careful structural design
✖ High reinforcement congestion
✖ Difficult to modify later
✖ Requires skilled construction
RCC Shear Wall vs Frame Structure
| Feature | Frame Structure | Shear Wall Structure |
|---|---|---|
| Lateral resistance | Low | Very high |
| Earthquake safety | Moderate | Excellent |
| Building height | Limited | Suitable for high-rise |
| Construction cost | Lower | Slightly higher |
Applications of Shear Walls
Shear walls are used in many structures including:
- High-rise residential buildings
- Commercial towers
- Hospitals
- Parking structures
- Industrial buildings
- Bridge piers
- Nuclear structures
Design Codes for RCC Shear Walls
Important codes used for shear wall design:
- IS 456:2000 – Plain and reinforced concrete
- IS 13920:2016 – Ductile detailing for earthquake resistance
- IS 1893:2016 – Seismic design of structures
Conclusion
RCC shear walls are one of the most effective structural systems used to resist lateral forces in buildings. With increasing construction of tall buildings and earthquake-resistant structures, shear walls have become an essential component of modern structural engineering.
Proper design, detailing, and construction of shear walls significantly improve building safety, durability, and performance during earthquakes and strong winds.
