Expansion, Contraction and Construction Joints in Concrete for Civil Works

1. Introduction

Concrete is one of the most widely used construction materials in civil engineering due to its strength, durability, and versatility. However, it is not immune to cracking. Cracks develop due to temperature variations, drying shrinkage, creep, and structural loads.

If these cracks are not controlled, they can lead to:

Structural weakness
Water leakage
Reinforcement corrosion
Reduced service life

To manage and control these inevitable movements, joints are intentionally provided in concrete structures.

These joints act as:

Stress relievers
Crack controllers
Movement absorbers

In this blog, we will explore expansion joints, contraction joints, and construction joints in detail with practical site insights, materials, and installation techniques.

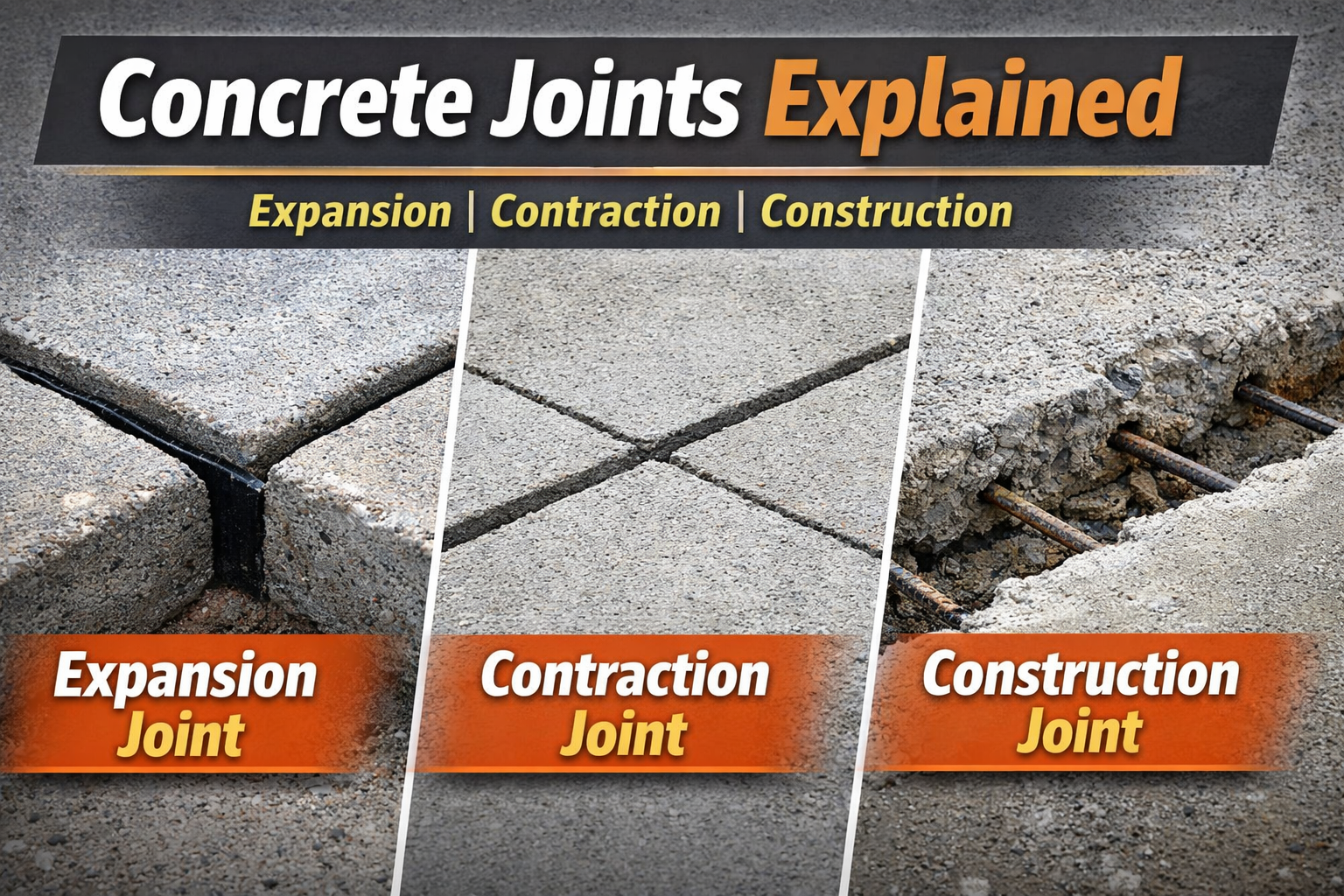

2. Types of Concrete Joints

Concrete joints are classified based on their function and structural behavior.

2.1 Expansion Joints

building expansion floor conditions A joint concrete floor

Expansion joints are provided to absorb thermal expansion in concrete structures.

🔹 Why needed?

Concrete expands when temperature increases. Without space to expand, internal stresses develop, leading to cracks.

🔹 Where used?

Long buildings
Bridges
Pavements
Retaining walls

🔹 Key Features:

Full-depth separation joint
Filled with compressible material
Allows movement without stress

🔹 Materials used:

Bituminous filler boards
Rubber or cork sheets
Fiberboard

🔹 Practical Example:

In a 30m long concrete pavement, expansion joints are typically provided at intervals of 20–30 meters.

2.2 Contraction Joints (Control Joints)

Contraction joints are designed to control cracking caused by shrinkage.

🔹 Why needed?

Concrete shrinks as it dries. This creates tensile stress, which leads to random cracking.

🔹 Function:

Creates a planned weak point
Forces cracks to occur in a straight line

🔹 Methods:

Saw cutting
Grooving
Tooling during finishing

🔹 Depth rule:

Typically 1/4th of slab thickness

🔹 Spacing:

24–36 times slab thickness

🔹 Example:

For a 150 mm slab → joint spacing ≈ 3.5 to 4.5 m

2.3 Construction Joints

https://hebau.de/sites/hebau.de/files/2021-09/Titelbild_News_1.png

https://ars.els-cdn.com/content/image/1-s2.0-S0950061823035997-gr1.jpg

Construction joints are provided when concreting work is stopped and resumed later.

🔹 Why needed?

Concrete cannot always be poured continuously due to:

Large structures
Work scheduling
Equipment limitations

🔹 Types:

Horizontal joints
Vertical joints

🔹 Important considerations:

Surface roughening
Bonding agents
Proper alignment

🔹 Example:

Between two casting days in columns or slabs

3. Materials Used in Concrete Joints

3.1 Joint Fillers

expansion joint filler material Dimensions

Joint fillers are used in expansion joints to absorb movement.

🔹 Properties:

Compressible
Durable
Non-reactive

🔹 Types:

Bituminous fiberboard
Cork board
Rubber sheets

3.2 Sealants

Sealants are applied to seal joints and prevent water entry.

🔹 Types:

Polysulfide
Polyurethane
Silicone

🔹 Components:

Primer
Backer rod
Sealant material

🔹 Benefits:

Waterproofing
Flexibility
Crack prevention

3.3 Waterstops

Waterstops are used in water-retaining structures.

🔹 Function:

Prevent water leakage through joints.

🔹 Types:

PVC waterstops
Rubber waterstops
Metal waterstops

🔹 Applications:

Basements
Water tanks
Dams

4. Installation Guidelines

Proper installation is critical for performance.

🔹 Expansion Joints:

Place filler board correctly
Ensure proper alignment
Provide sealant groove

🔹 Contraction Joints:

Cut within 6–12 hours after casting
Maintain uniform spacing

🔹 Construction Joints:

Clean surface thoroughly
Roughen surface
Apply bonding agent

🔹 Waterstop Installation:

Ensure correct positioning
Avoid displacement during concreting
Proper splicing is essential

5. Practical Site Tips

✔ Always clean joints before sealing
✔ Use oil-free compressed air
✔ Ensure proper curing before sealing
✔ Avoid sealing in wet conditions
✔ Maintain temperature limits (>5°C recommended)
