Introduction

In steel structures, the base plate is a critical element that transfers load from the steel column to the concrete foundation safely. A properly designed base plate ensures uniform load distribution, prevents excessive bearing stress in concrete, and provides stability against shear and overturning.

In India, base plate design is mainly governed by IS 800:2007 (Limit State Design) along with IS 456:2000 for concrete bearing checks.

This article explains the complete base plate design procedure as per IS Code, including formulas, checks, and practical guidelines.

---

Relevant IS Codes

• IS 800:2007 – General Construction in Steel
• IS 456:2000 – Plain and Reinforced Concrete
• IS 875 (Part 1–5) – Design Loads
• IS 1893 (Part 1) – Earthquake loads (if applicable)
• IS 2062 – Structural steel material
• IS 808 – Hot rolled steel sections

---

🔹 Types of Column Base Plates

1. Slab Base Plate – Light to medium loads
2. Gusseted Base Plate – Heavy axial loads
3. Moment Resisting Base Plate – Axial load + bending + shear

---

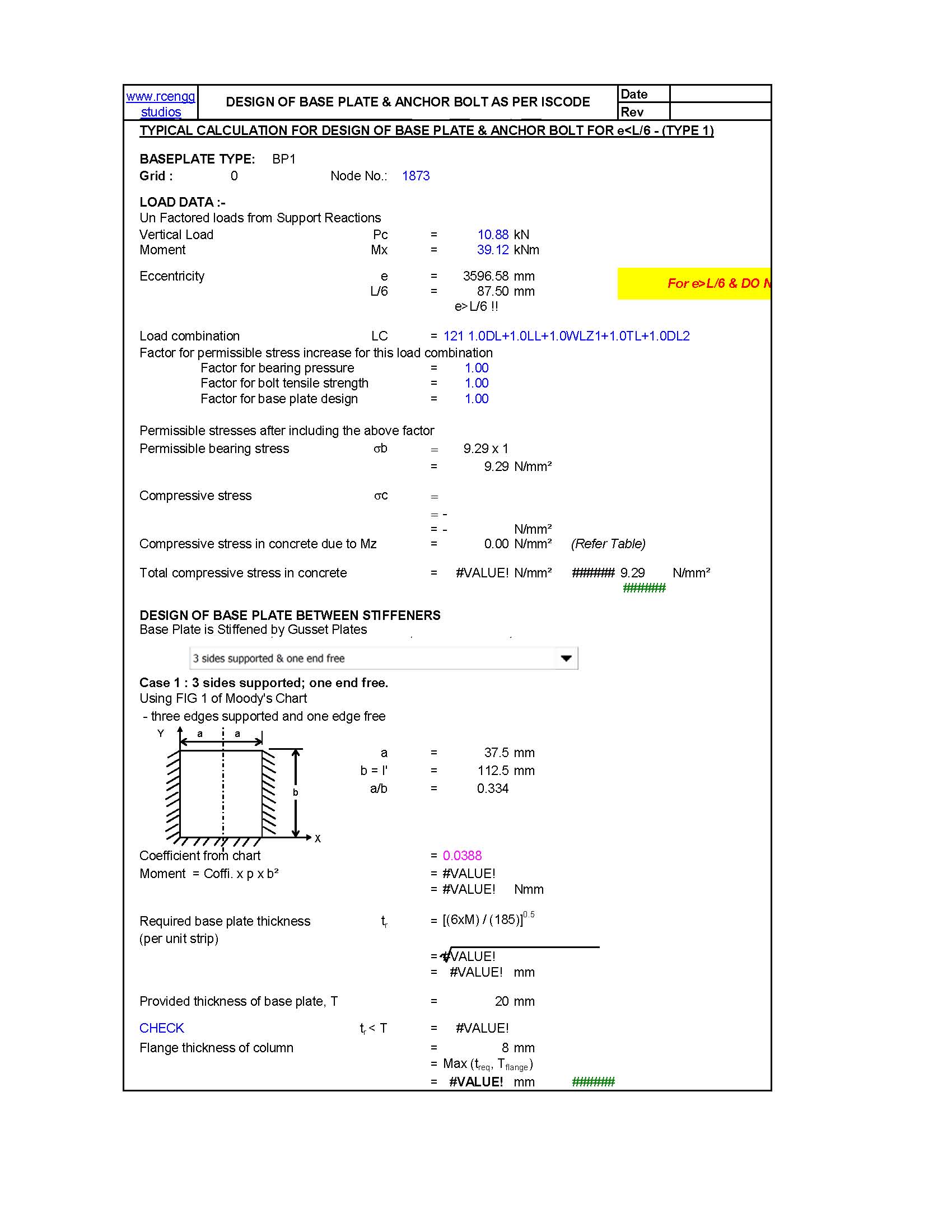

🔹 Step-by-Step Base Plate Design as per IS 800:2007

---

Step 1: Factored Loads

From structural analysis:

• Factored axial load → $P_u$Pu​
• Factored moment → $M_u$Mu​
• Factored shear → $V_u$Vu​

Load combinations as per IS 800 Clause 5.3.3

---

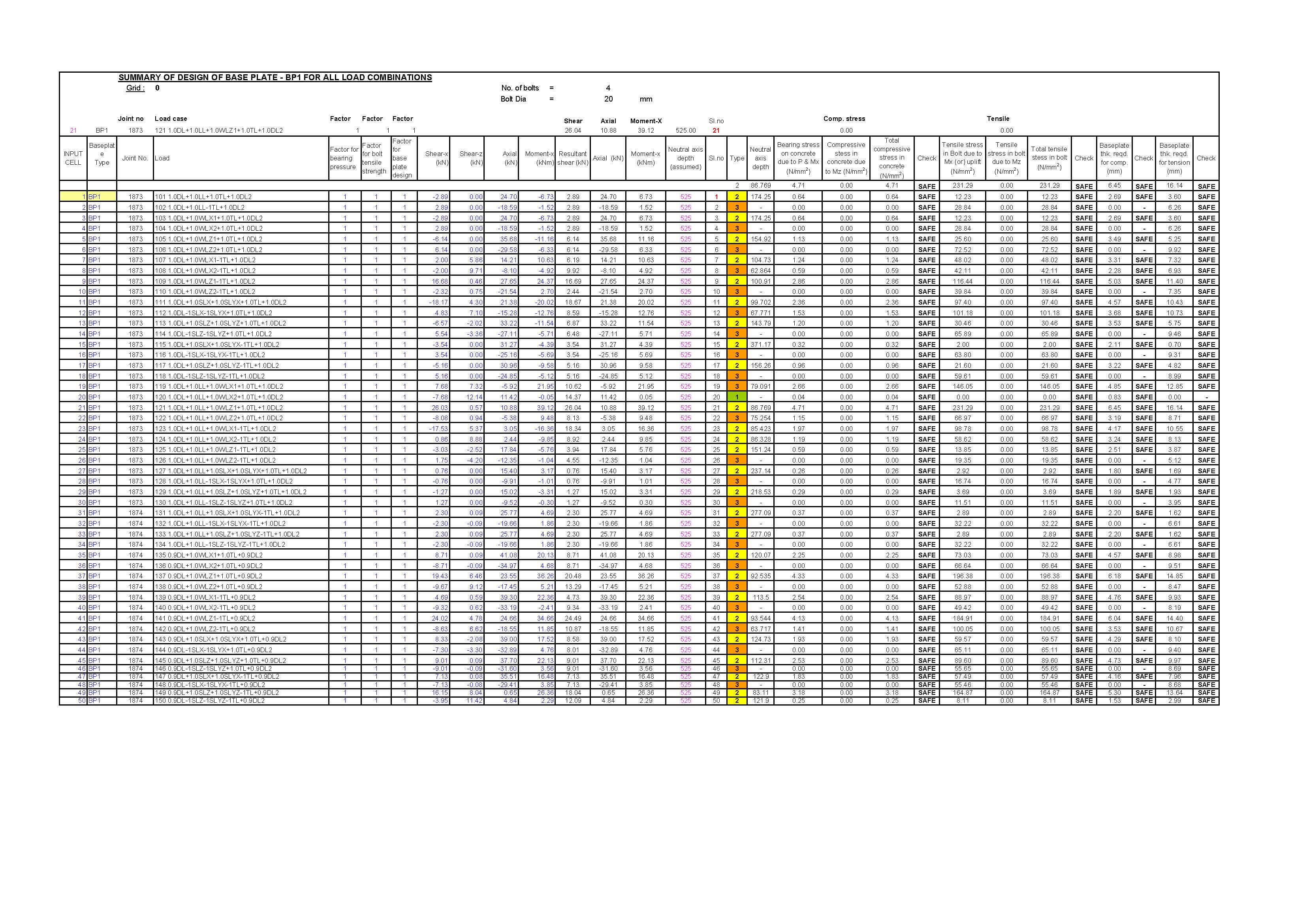

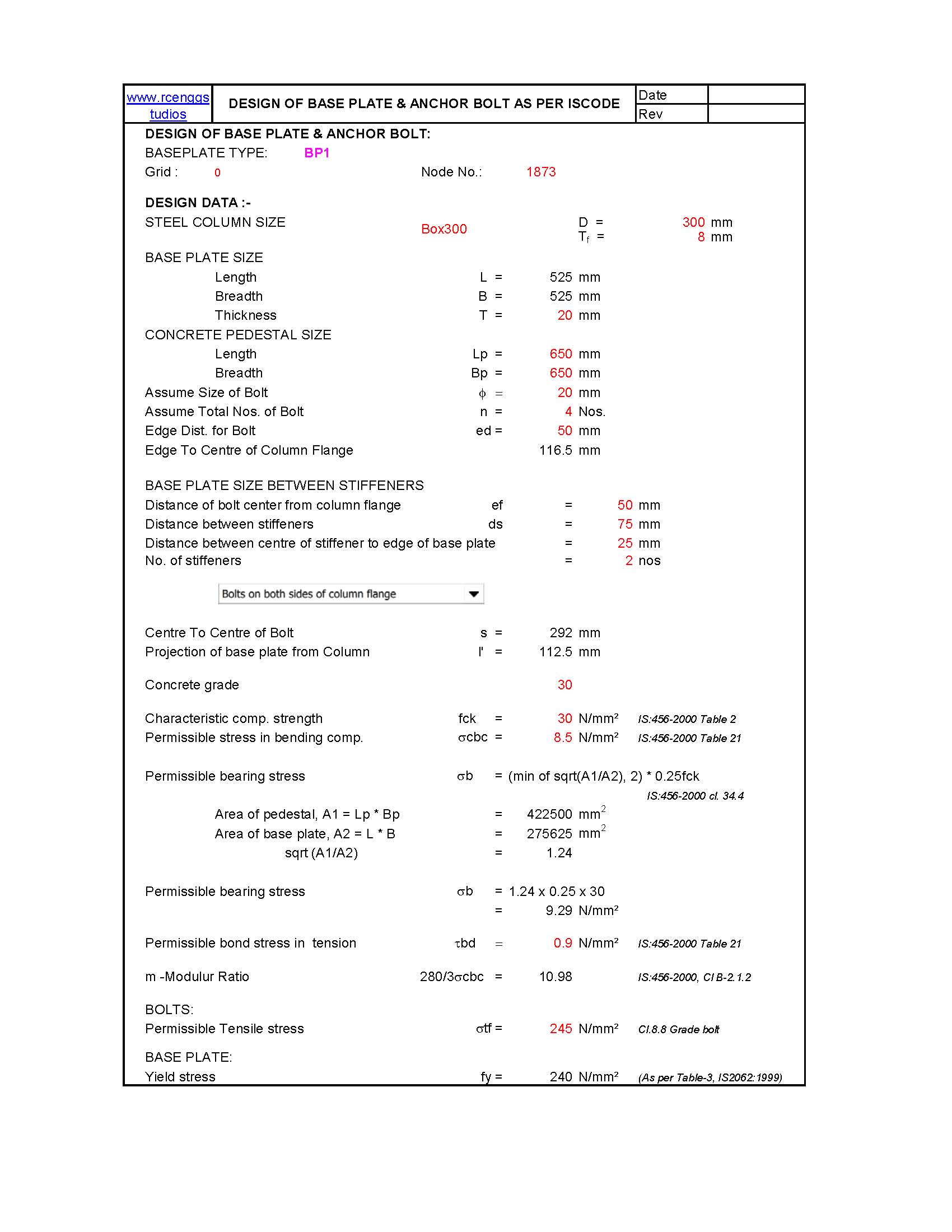

Step 2: Bearing Strength of Concrete

As per IS 800 Clause 7.4.1 and IS 456, design bearing strength:$$\sigma_{br} = 0.45 f_{ck} \sqrt{\frac{A_1}{A_2}} \le 0.9 f_{ck}$$σbr​=0.45fck​A2​A1​​​≤0.9fck​

Where:

• $f_{ck}$fck​ = characteristic compressive strength of concrete
• $A_1$A1​ = base plate area
• $A_2$A2​ = concrete pedestal area

For preliminary sizing:$$A_{req} = \frac{P_u}{0.45 f_{ck}}$$Areq​=0.45fck​Pu​​

Select plate size $B \times D$B×D such that:$$\frac{P_u}{B \times D} \le \sigma_{br}$$B×DPu​​≤σbr​

---

Step 3: Pressure Check Under Base Plate

If moment exists:$$q_{max,min} = \frac{P_u}{A} \pm \frac{M_u}{Z}$$qmax,min​=APu​​±ZMu​​

Where section modulus:$$Z = \frac{B D^2}{6} \;\; \text{or} \;\; \frac{D B^2}{6}$$Z=6BD2​or6DB2​

Conditions:

• $q_{max} \le \sigma_{br}$qmax​≤σbr​
• $q_{min} \ge 0$qmin​≥0 (no tension unless anchors are designed)

---

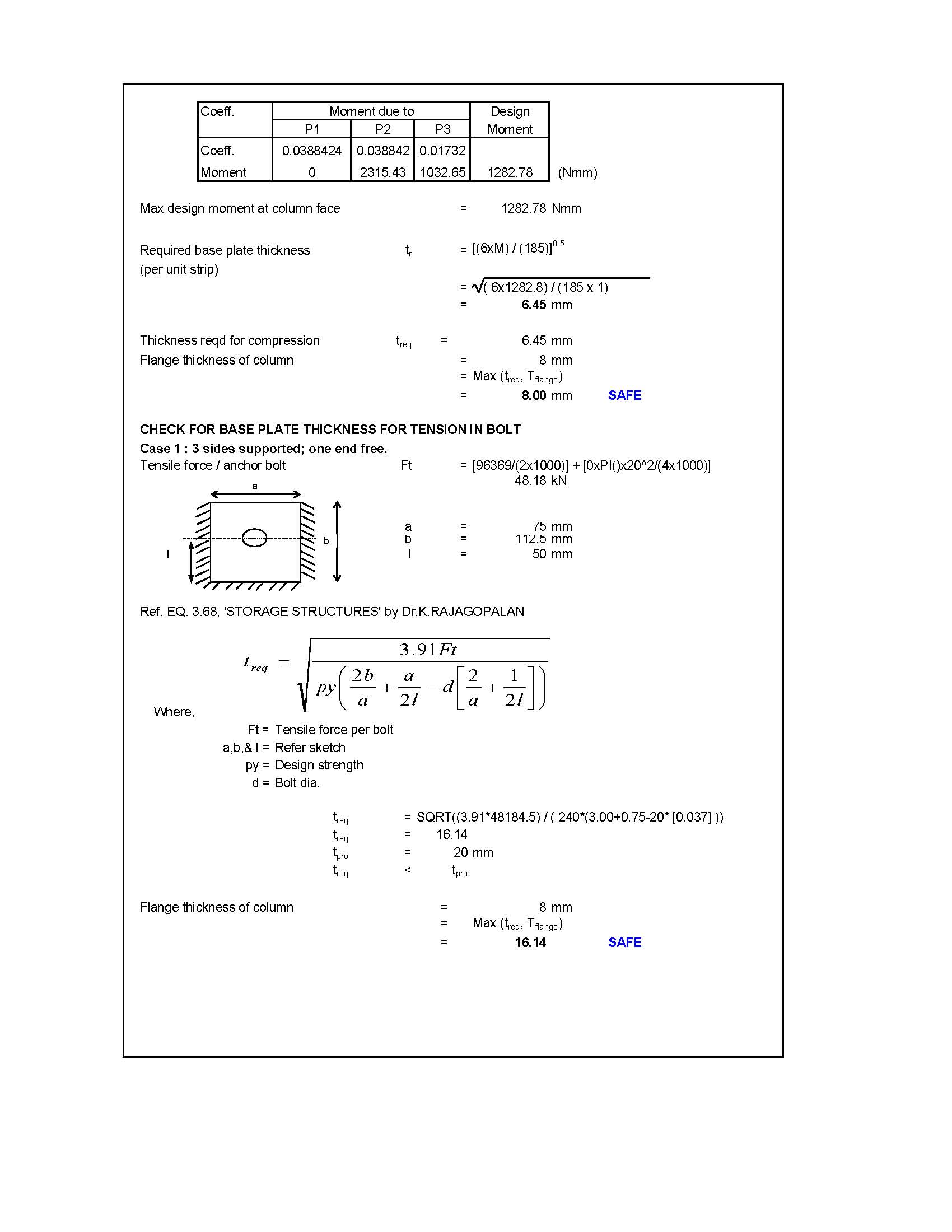

✅ Step 4: Thickness of Base Plate

Base plate projection acts as a cantilever slab.

Bending moment:$$M = q \times \frac{a^2}{2}$$M=q×2a2​

Required thickness:$$t = \sqrt{\frac{6M}{f_y / \gamma_{m0}}}$$t=fy​/γm0​6M​​

Where:

• $a$a = projection beyond column face
• $f_y$fy​ = yield stress of steel (250 MPa usually)
• $\gamma_{m0} = 1.10$γm0​=1.10

Refer IS 800 Annex E.

Minimum practical thickness: 12 mm to 25 mm.

---

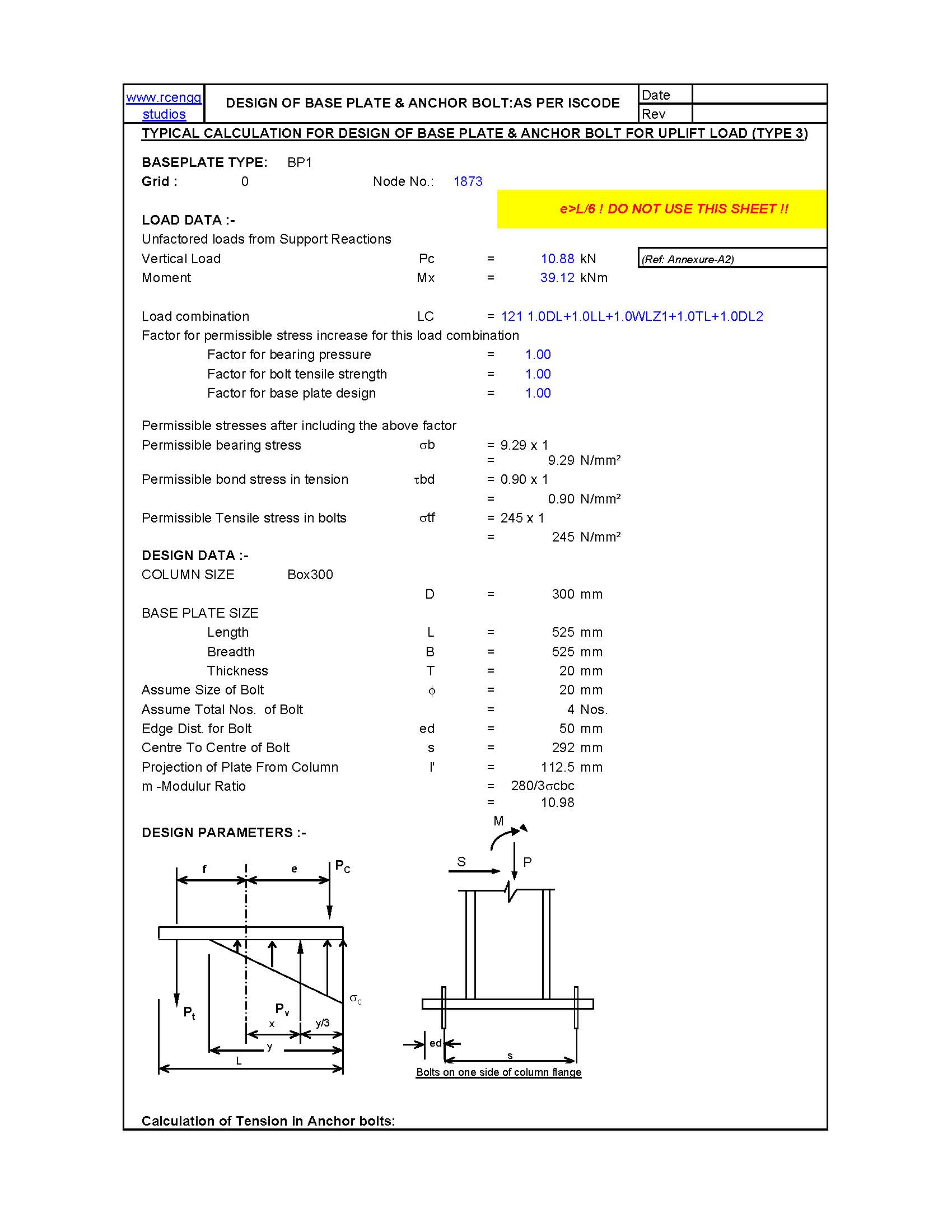

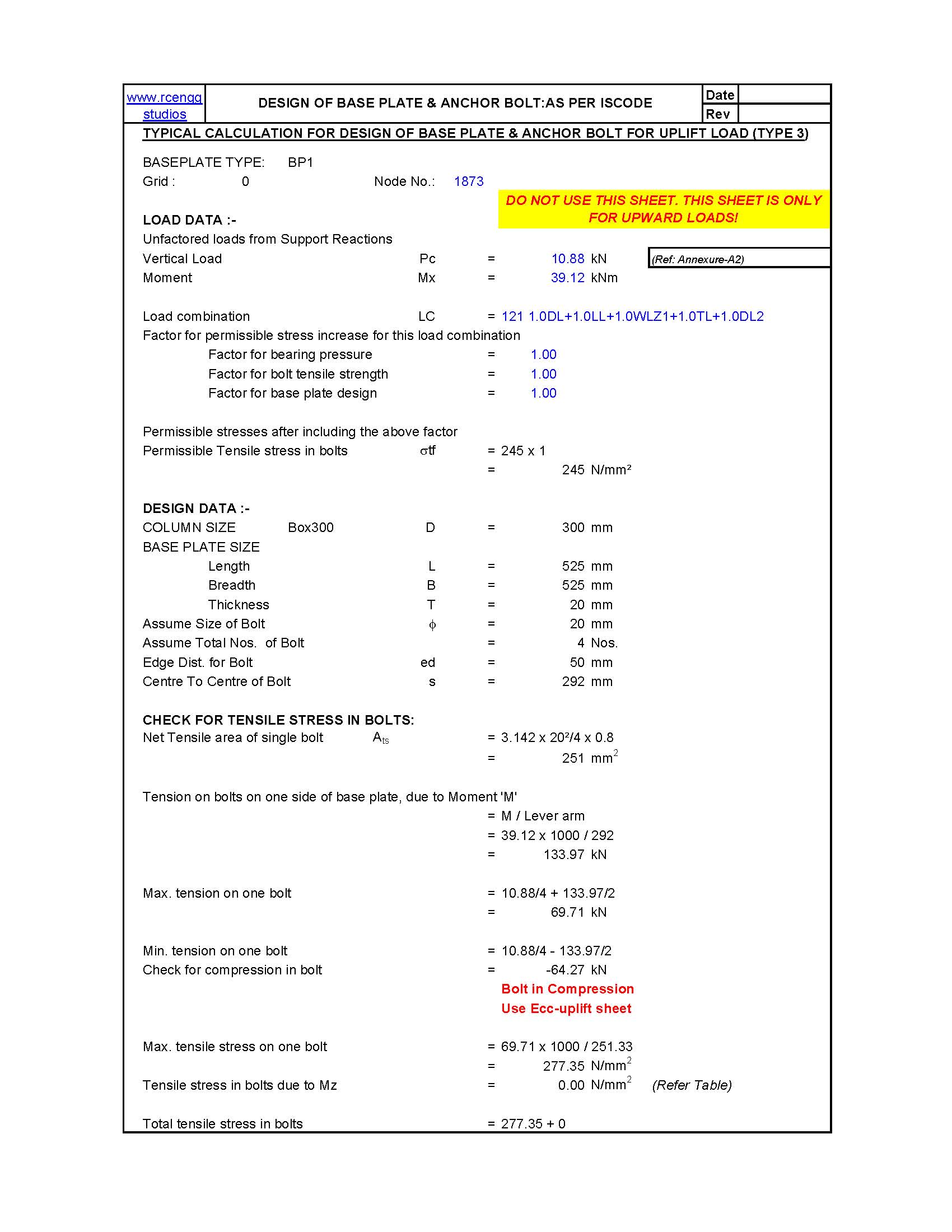

✅ Step 5: Anchor Bolt Design

Anchor bolts resist:

• Shear
• Tension (uplift from moment)

Design checks as per IS 800 Section 10:

• Steel failure
• Concrete cone failure
• Bond failure
• Interaction of shear and tension

---

✅ Step 6: Weld Design

Column welded to base plate:$$\text{Check for axial + shear + moment}$$Check for axial + shear + moment

Design as per IS 800 Section 10.

---

🔹 Practical Detailing Guidelines

• Base plate size ≥ column size + 100 mm minimum projection
• Minimum plate thickness: 12 mm
• Minimum concrete grade: M20
• Grout thickness: 25–50 mm
• Minimum anchor bolts: 4 Nos
• Provide edge distance ≥ 1.5 × bolt diameter

---

🔹 Common Base Plate Failures (To Avoid)

• Crushing of concrete
• Excessive bending of plate
• Anchor bolt pull-out
• Uneven grout packing
• Inadequate weld size

---

🏁 Conclusion

Base plate design is not only about axial load. Moment, shear, bearing pressure, plate bending, anchors, and welds must all be checked as per IS 800:2007. Proper detailing ensures long-term performance and structural safety.
