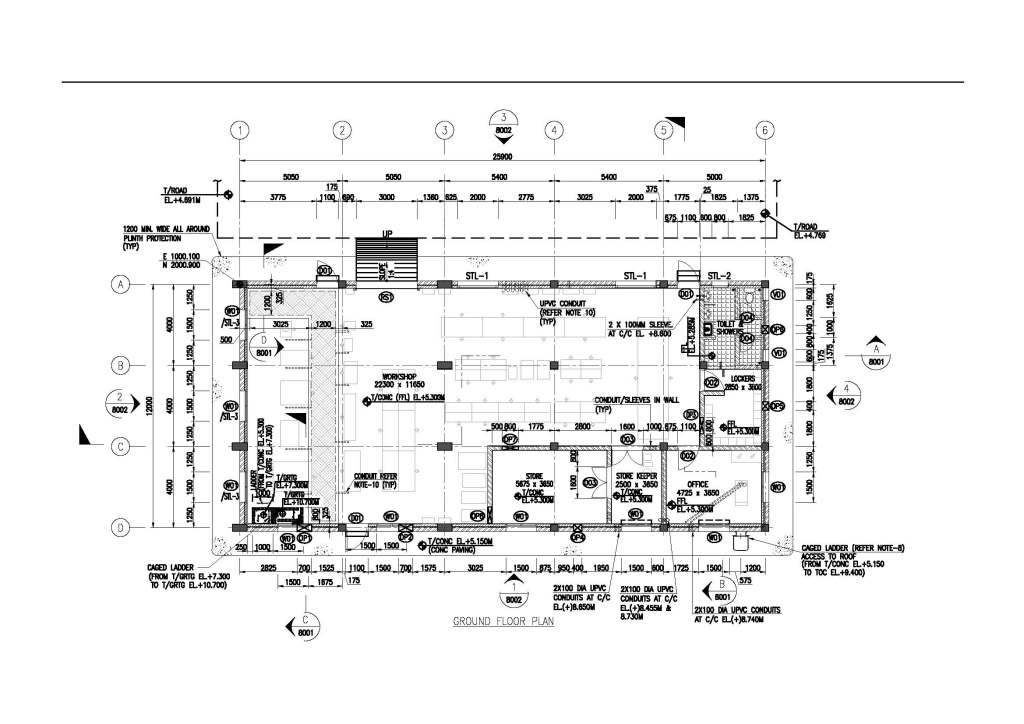

D:\Website\Industrail std dwg\std dwg\LAyout and details of WorkShop Building-Model.pdf\LAyout and details of WorkShop Building-PLAN.jpg

Workshop Building Architectural Layout

Posted by:

RC

|

On:

|

,
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

How to Prepare an Architectural Layout for a Workshop Building in Industrial Projects

Designing an architectural layout for a workshop building in an industrial project requires careful planning to optimize functionality, workflow, safety, and future expansion. The layout must consider operational requirements, zoning regulations, building codes, and environmental factors.

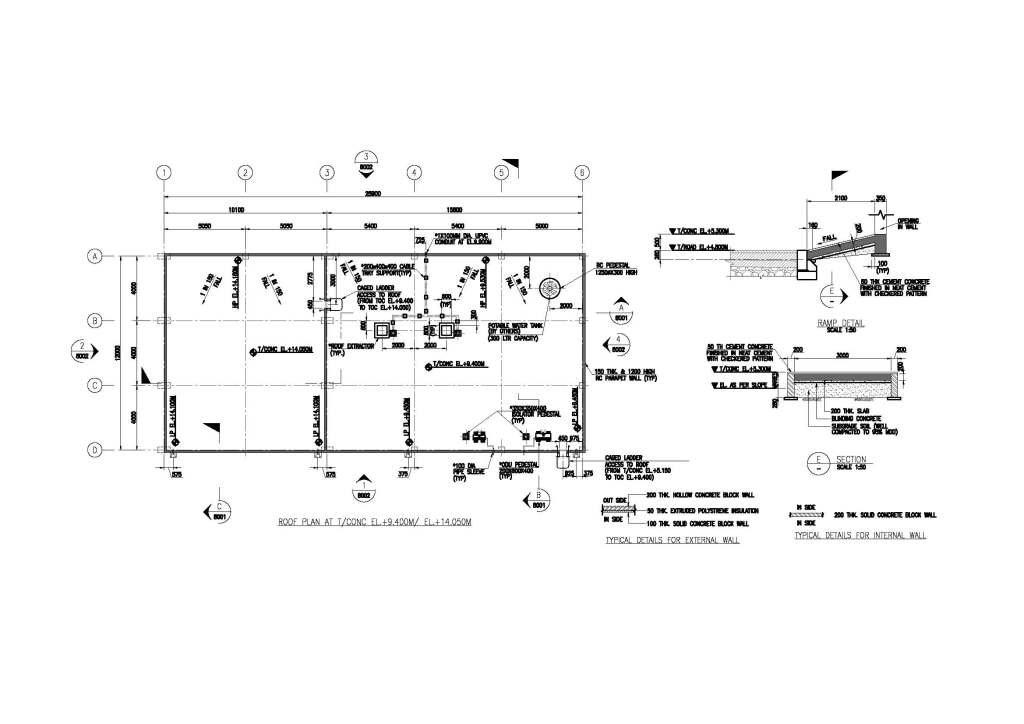

D:\Website\Industrail std dwg\std dwg\LAyout and details of WorkShop Building-Model.pdf\LAyout and details of WorkShop Building-PLAN.jpg

1. Key Considerations for Workshop Layout Design

a. Purpose of the Workshop

  • Define the type of industry: Manufacturing, assembly, fabrication, repair, testing, or R&D.
  • Identify equipment, machinery, and material flow requirements.
  • Plan for storage areas, raw materials, finished goods, and waste disposal.

b. Site Selection & Orientation

  • Choose a site with easy transportation access (roads, highways, rail).
  • Optimize building orientation for natural lighting, ventilation, and energy efficiency.
  • Ensure adequate setbacks, fire access routes, and landscaping.

c. Compliance with Regulations & Standards

  • Follow local zoning laws and building codes (NBC, OSHA, NFPA, ISO).
  • Consider environmental impact, fire safety norms, and waste management guidelines.
  • Ensure worker safety provisions (exit routes, ventilation, hazardous area zoning).

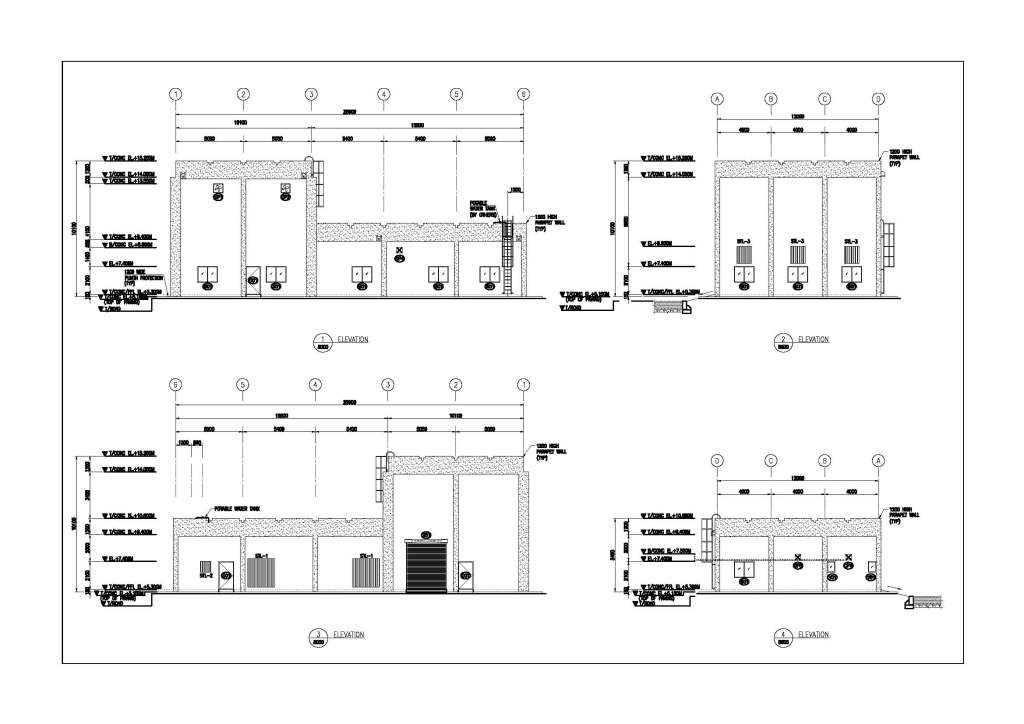

D:\Website\Industrail std dwg\std dwg\LAyout and details of WorkShop Building-Model.pdf\SECTION.jpg

2. Steps to Prepare an Architectural Layout

Step 1: Define Space Requirements

  1. Production Area
    • Equipment/machinery layout.
    • Workstations and assembly lines.
    • Overhead crane/hoist requirements.
  2. Storage & Material Handling
    • Raw material storage.
    • Finished goods storage.
    • Waste disposal zones.
  3. Utility & Service Areas
    • Electrical room, compressor room, HVAC.
    • Boiler, chiller, and water treatment plants.
  4. Administrative & Support Areas
    • Office spaces, meeting rooms, and control rooms.
    • Employee facilities (canteen, lockers, restrooms).
    • Visitor reception and security rooms.

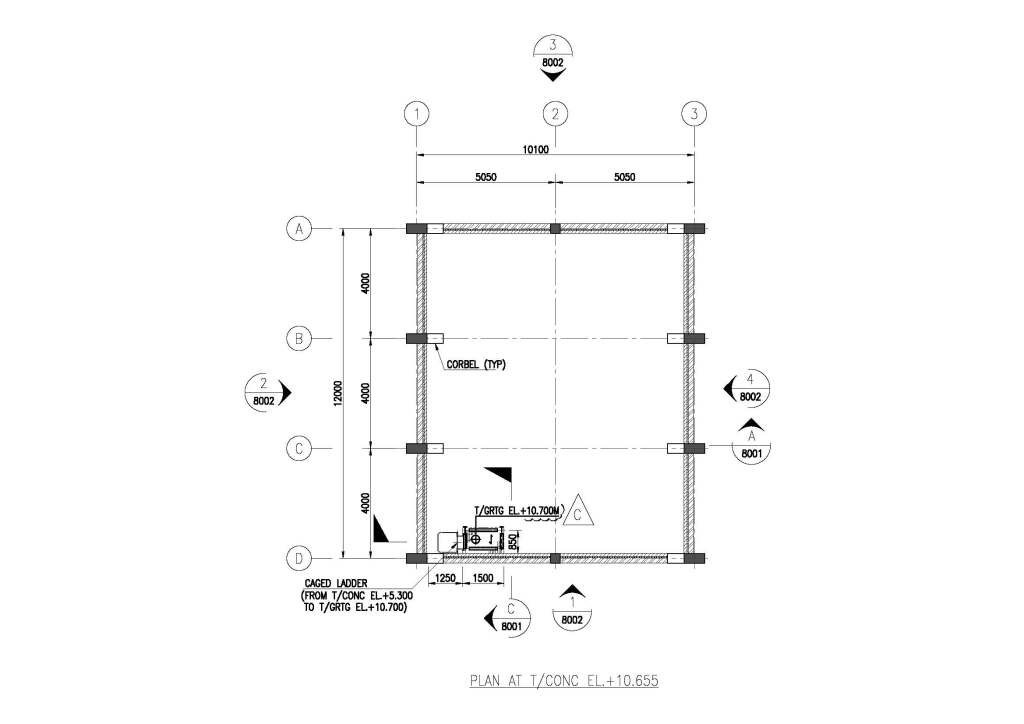

D:\Website\Industrail std dwg\std dwg\LAyout and details of WorkShop Building-Model.pdf\PLAN2.jpg

Step 2: Zoning and Space Planning

D:\Website\Industrail std dwg\std dwg\LAyout and details of WorkShop Building-Model.pdf\FINISHING SCHEDULE.jpg
  • Divide the building into functional zones for safety and efficiency.
  • Use color coding in plans for quick identification.
ZonePurposeTypical Requirements
Production AreaMain working areaLarge spans, high ceilings, reinforced floors
StorageMaterial handlingRacking system, ventilation, forklifts access
Utility AreasPower & HVACSeparate from main workspaces
AdministrativeOffice & planningNoise insulation, access control
Employee FacilitiesComfort & safetyProper lighting, ventilation, hygiene

Step 3: Create a Conceptual Layout

  • Start with sketches or 2D drawings using AutoCAD, Revit, or SketchUp.
  • Consider movement paths for workers, forklifts, and materials.
  • Ensure adequate circulation spaces and exit routes.

Step 4: Structural Considerations

  • Column grid spacing: Typically 6m x 6m, 8m x 8m, or 10m x 10m for flexibility.
  • Roof type: Steel truss, PEB (Pre-Engineered Buildings), RCC slab.
  • Floor load capacity: Heavy-duty flooring for machinery (at least 5 kN/m²).

Step 5: Electrical, Mechanical & Plumbing (MEP) Planning

  • Allocate space for electrical panels, transformers, generator backup.
  • Ensure fire-fighting provisions (hydrants, extinguishers, sprinklers).
  • Provide adequate plumbing and drainage systems for waste disposal.

Step 6: Optimize for Safety & Efficiency

  • Fire safety exits and proper escape routes as per NFPA/IS codes.
  • Ventilation & exhaust systems for air quality.
  • Noise reduction measures (acoustic insulation, buffer zones).
  • Natural lighting & energy efficiency (skylights, LED lighting, solar panels).

Step 7: Develop Final Drawings & 3D Visualization

  • Create detailed architectural blueprints with dimensions & annotations.
  • Use 3D models for better visualization and approval.
  • Ensure stakeholder review and approval before finalizing designs.

3. Software for Preparing Workshop Layout

  • AutoCAD – 2D drafting and workshop planning.
  • Revit – 3D BIM modeling for industrial buildings.
  • SketchUp – Quick 3D conceptual modeling.
  • SolidWorks – Equipment & machinery placement.
  • ETABS/SAP2000 – Structural analysis.

4. Example Layout of an Industrial Workshop Building

SectionKey Features
Main Workshop AreaLarge span, crane support, ventilation
Storage & LoadingSeparate docks, forklifts access
Utility AreasPower, HVAC, water supply rooms
Office & AdminWorkstations, conference rooms
Safety & Fire ExitEmergency exits, muster points
